Particle size distribution (gradation) analysis is performed for the quantitative determination of the particle size distribution of a cohesionless soil sample. ASTM D 422 Standard Test Method for Particle size Analysis of Soils is used for analysis

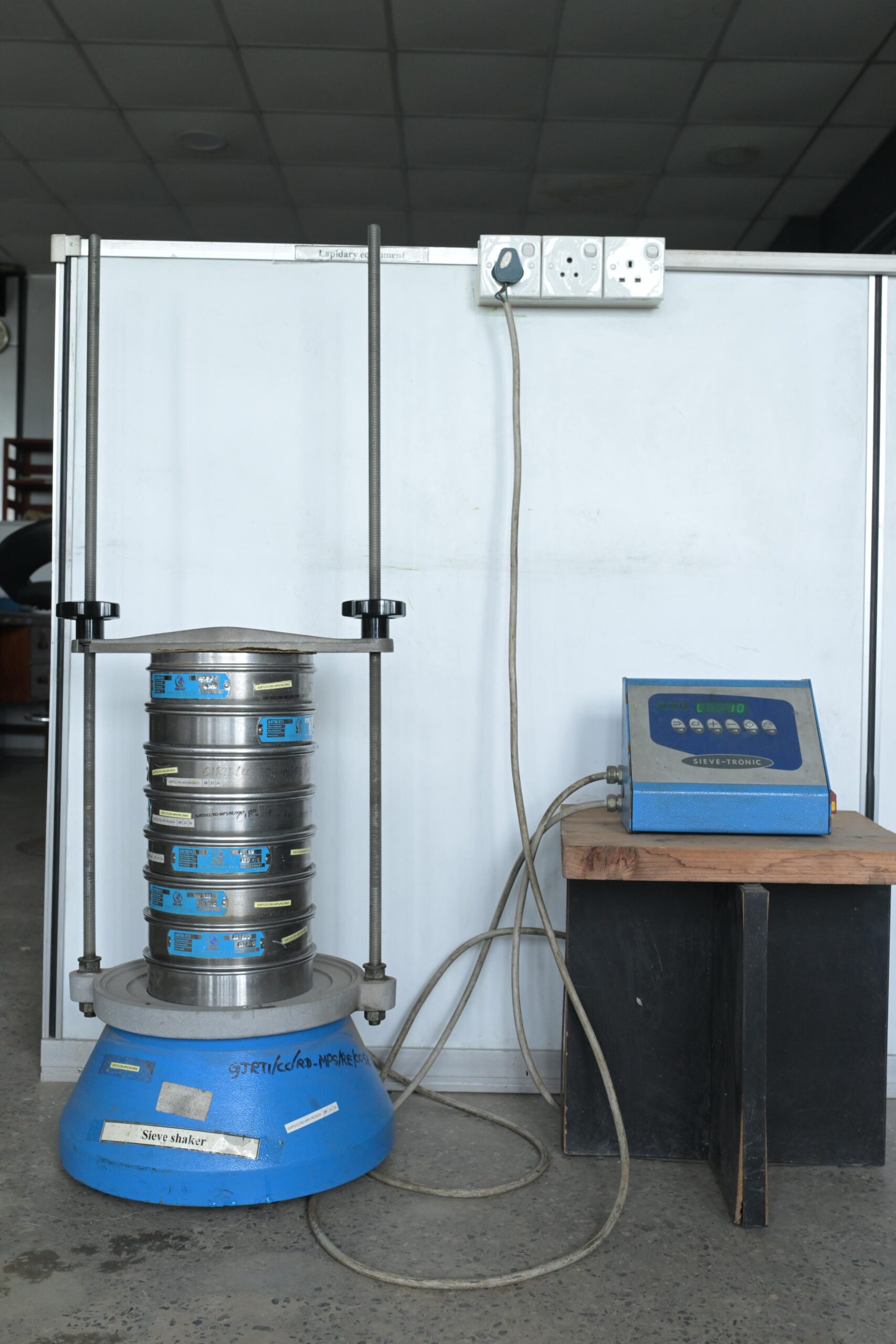

Available Instrument: ELE Sieve -Tronic Electromagnetic Sieve shaker
Key Features
- Uses electromagnetic vibrations to sieve and classify various materials quickly
and uniformly.
- Equipped with an electromagnetic drive system that generates high-frequency vibrations for optimal particle movement and sieving accuracy.
- Offers precise control over sieving parameters with adjustable amplitude and
vibration intensity settings.
- Sieving times are fully variable from 1 to 999 minutes
- Maximum allowable sample weight including sieves 20 kgs
- Sieving timer-10- 60 minutes
- Sieving modes – Intermittent sieving, continuous sieving
Sample Acceptance and Analysis
- It is preferred the sample consists of particles sized from 25mm to 63µm, and void of any organic matter
- Either dry sieving or wet sieving with preferred sieve size combinations could be performed according to the customer requirement.
